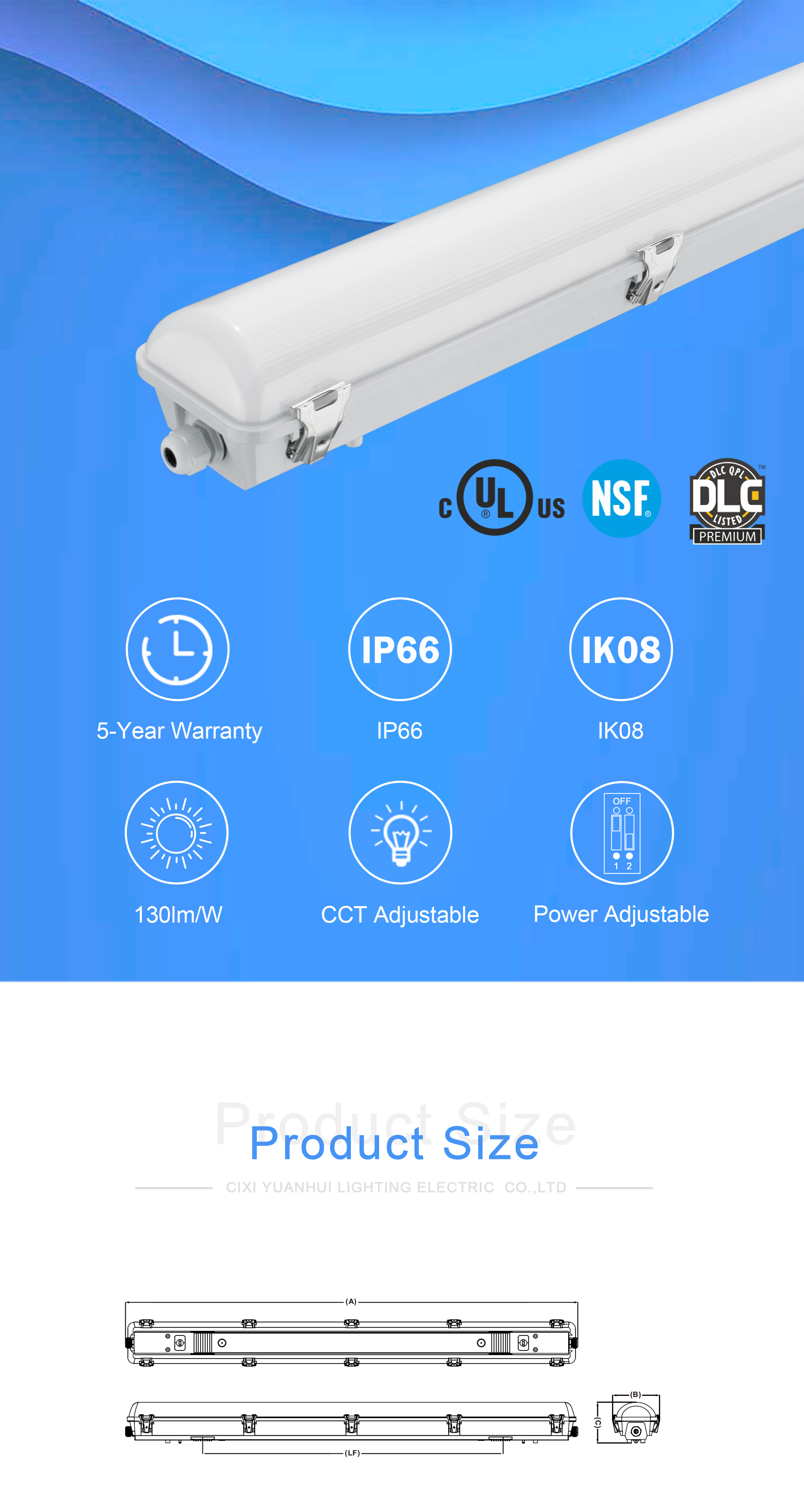

Gray PC LED Linear Light For Commerical Lighting

VP, a ground screw is used to connect the driver and the PCB with wires directly, which makes it safe. It is much more stable in structure and performance to connect PCB solder connections and wires with a terminal. UL certified orange connectors are used for better performance of wiring safety. Additional wires are kept for a 1-10V dimming device. 1.5 or 3-hour emergency kit is available for option. A microwave motion sensor is available for option. With sufficient light, the lamp doesn’t switch on. With insufficient ambient light, the sensor switches on the lamp when motion is detected. After hold time, the sensor switches off the lamp when no motion is detected.
  • VP


Product Description :

LED Waterproof Tunel Light IP66

1. Lighting body: PC or ALUMINIUM material body with high impact resistance, non-deformable structure for installations in environments with vibration.

2. Lighting cover: PC safety msterial with 1.5mm on the body by means of metal clips, protects it against knocks or water flood.

3. LEDs: High quality SMD5630

4. Applications: Indoor & outdoor areas with high IP requirement, food industry chemical plants, heavy mining industries environments with the presence of cuting oil & other aggressive substances, oil industries, offshore industry, petrochemical industries, swimming pool areas, dusty humid and corrosive environments, washing houses, breweries, under canopy areas, pharmaceutical factories, loading bays, food industries, packing areas, garages, cellars and industrial complex, ware house, under-bridge, tunnel, ship, bathe center, packing lot, railway platforms, lobbies, refrigeratory and city environment luminance field ect.

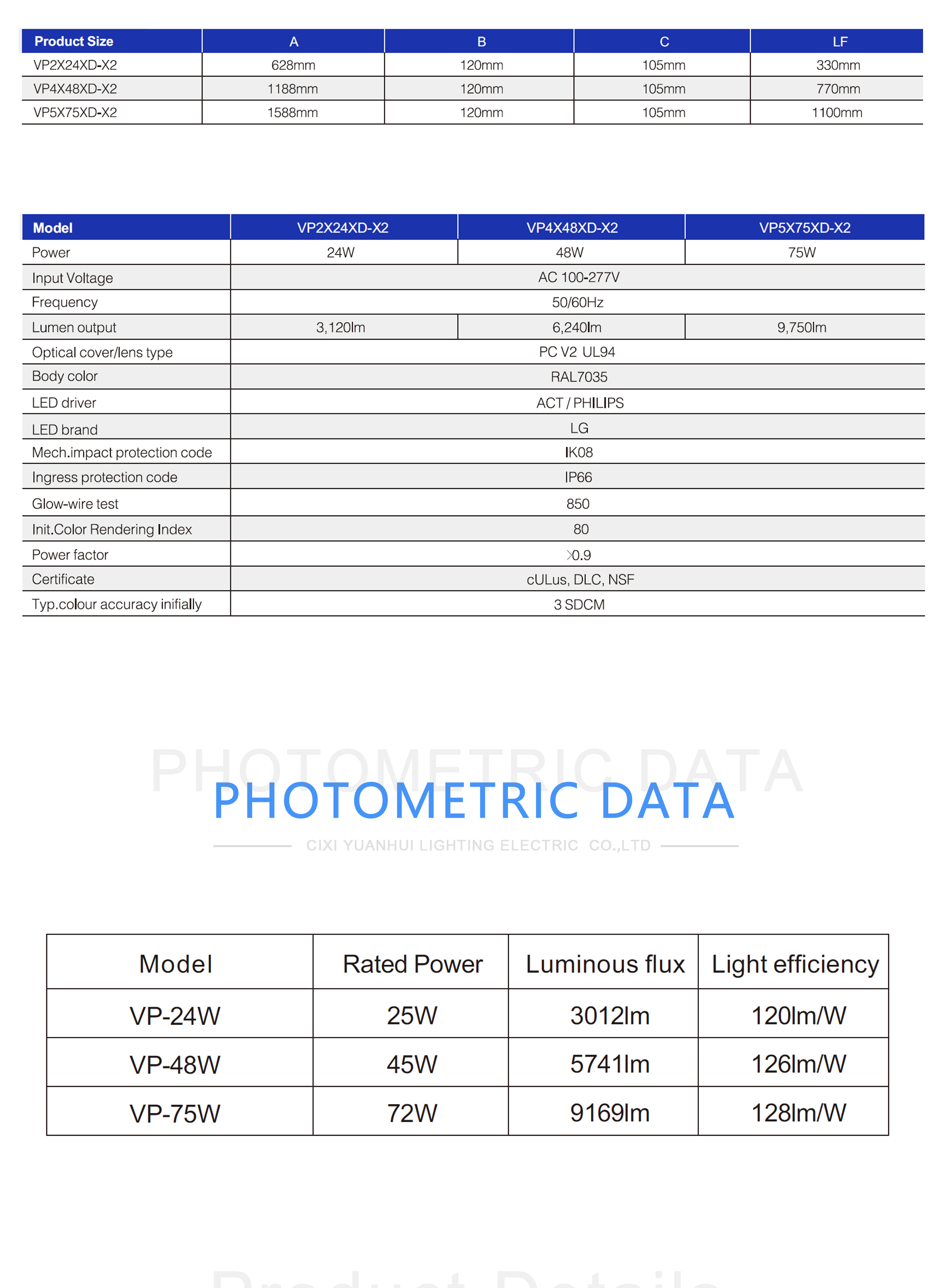

5. Operating voltage: 100V ~ 277V, 50Hz ~ 60Hz.

6. Driver:pass EMC test,high quality driver

7. Wattage:  38W  48W  75W

8. Operating temperature: -20C ~ 50C

9. IP rating: IP66, outstanding stability of water tight gasket, waterproof, explosion proof, dustproof.

10. Lumens:100lm/W

11. Ra>80

12.Colour temperature:2700-6500K

13. Clip: PC or stainless steel clip

14. Certificate: CE, GS, RoHS, SAA, UL.





Q1: Can I have a sample order for led light?

A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q2: What is the lead time?

A2: Samples need 3-5 working days, mass products need 7-10 days.



Q3: Do you have any MOQ limit for led light order?

A3: Low MOQ, 1pc for sample checking is available.


Q4: How do you ship the goods and how long does it take to arrive?

A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q5: How to proceed an order for led light?

A5: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our

suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.


Q6: Is it OK to print my logo on led light product?

A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.


Q7: Do you offer guarantee for the products?

A7: Yes, we offer 2-5 years warranty to our products.


Q8: How to deal with the faulty?

A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lights with new order for small quantity.

For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
